KUKA KRL Professional — Complete Industrial Tools Encyclopedia

Exhaustive technical reference for industrial features, field commissioning benefits, keyboard shortcuts, configuration parameters, and before/after code examples.

64+

Total Tools

23

Community (Free)

41+

Pro Industrial

6

Categories

#01[FREE]

⌨️ Ctrl+K Ctrl+T

6 Industrial KUKA Themes

High-contrast color themes tuned specifically for rugged shop-floor laptops in bright sunlight or dark factory cells.

Commissioning Benefit:Eliminates eye strain during 12-hour commissioning shifts.

[FAULT] Before (Legacy / Fault Risk):

; Standard generic editor with low contrast
PTP XHOME Vel=100%

[OK] With KUKA KRL Pro:

; KUKA Dark Theme with vivid syntax highlighting
PTP XHOME Vel=100% DEFAULT

Config: workbench.colorThemesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

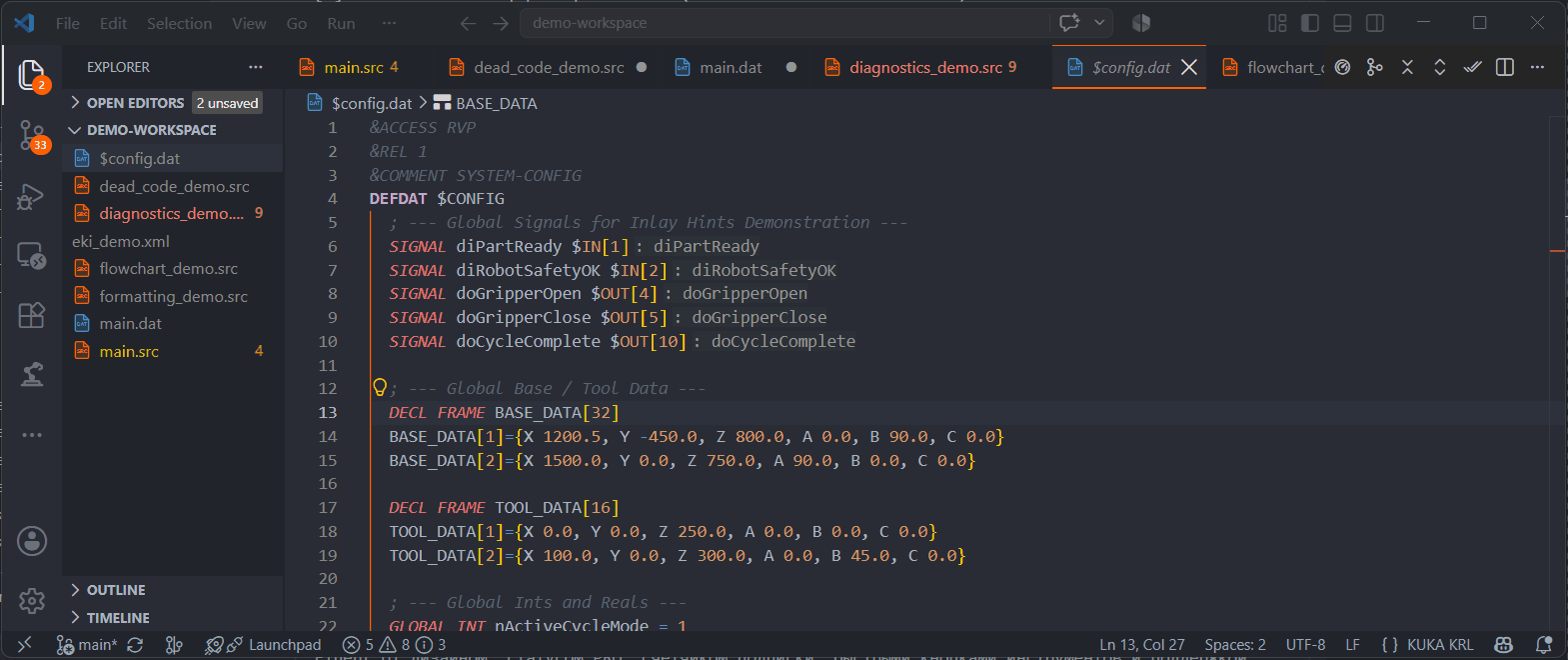

#02[FREE]

⌨️ Ctrl+Space

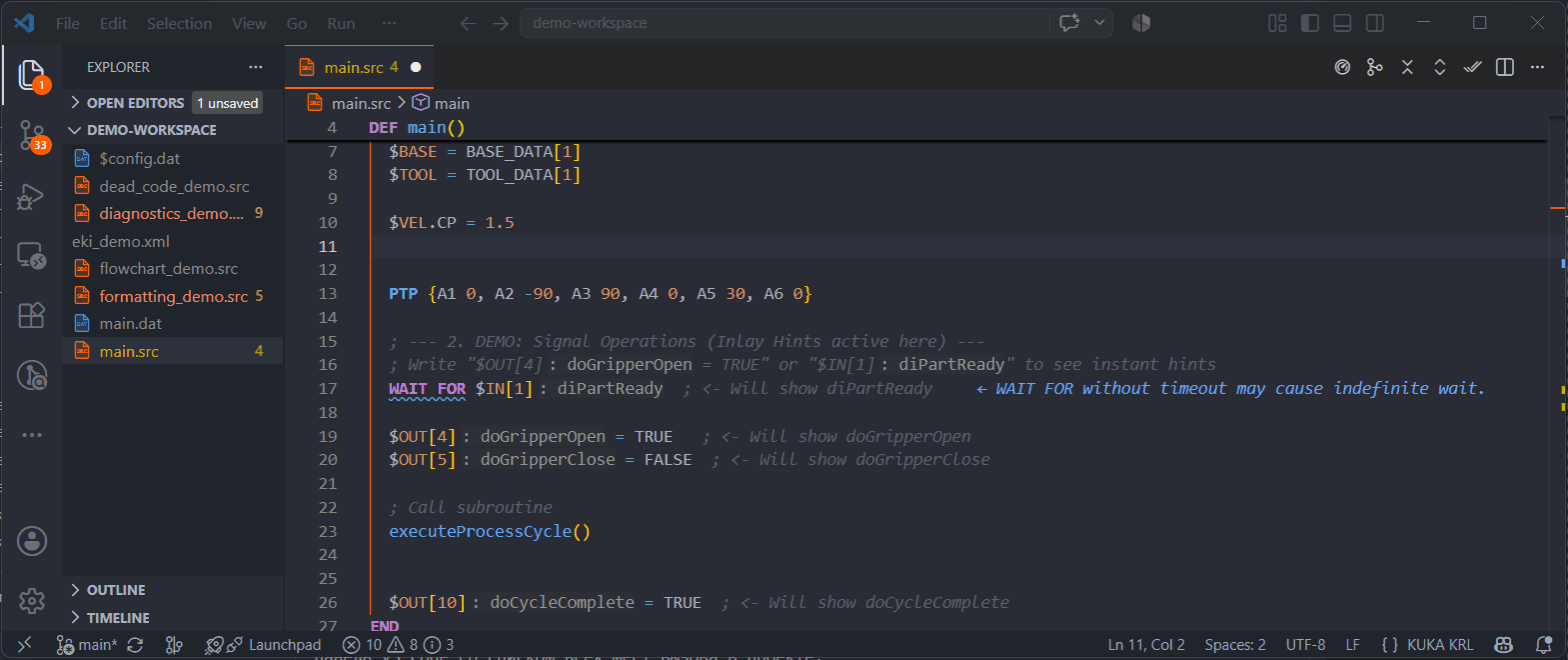

Smart Autocomplete & 957+ KSS Variables

Instant suggestions for all 957+ KUKA system variables ($ADVANCE, $OV_PRO, $POS_ACT, $VEL.CP, $TORQMON) with documentation tooltips.

Commissioning Benefit:Zero typos in complex system variables, eliminating controller compilation aborts.

[FAULT] Before (Legacy / Fault Risk):

$ADV = 3 ; Error: undefined variable

[OK] With KUKA KRL Pro:

$ADVANCE = 3 ; Validated KSS Motion Look-Ahead

Config: editor.quickSuggestionssettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

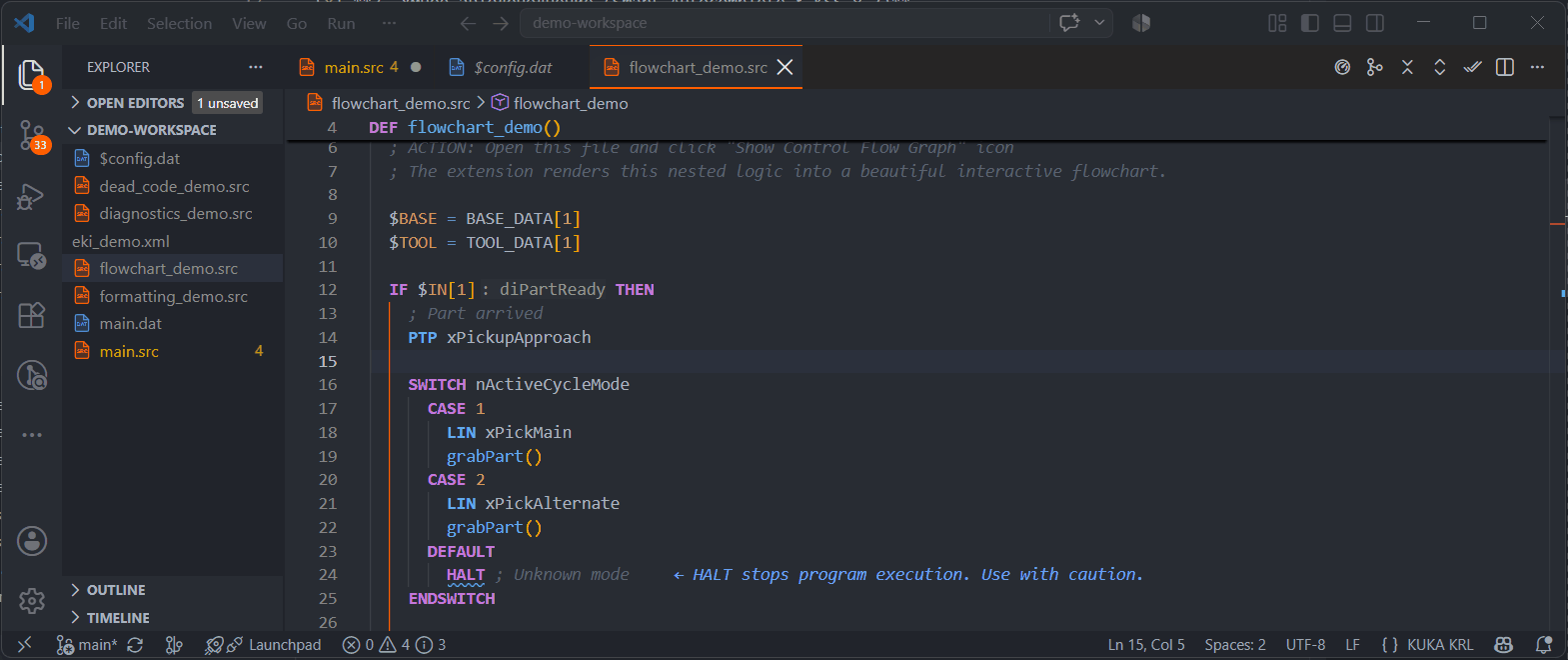

#03[FREE]

⌨️ F12

Cross-File Go-to-Definition (.src ↔ .dat)

Jump instantly between procedure calls in .src and coordinate declarations in corresponding .dat files.

Commissioning Benefit:Saves hours spent manually opening and searching large companion .dat files.

[FAULT] Before (Legacy / Fault Risk):

; Manual searching through 5,000 line .dat file...

[OK] With KUKA KRL Pro:

; F12 on XPICK_PART jumps directly to DECL E6POS in .dat

Config: kuka.navigation.crossFilesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#04[PRO]

⌨️ Alt+Shift+H

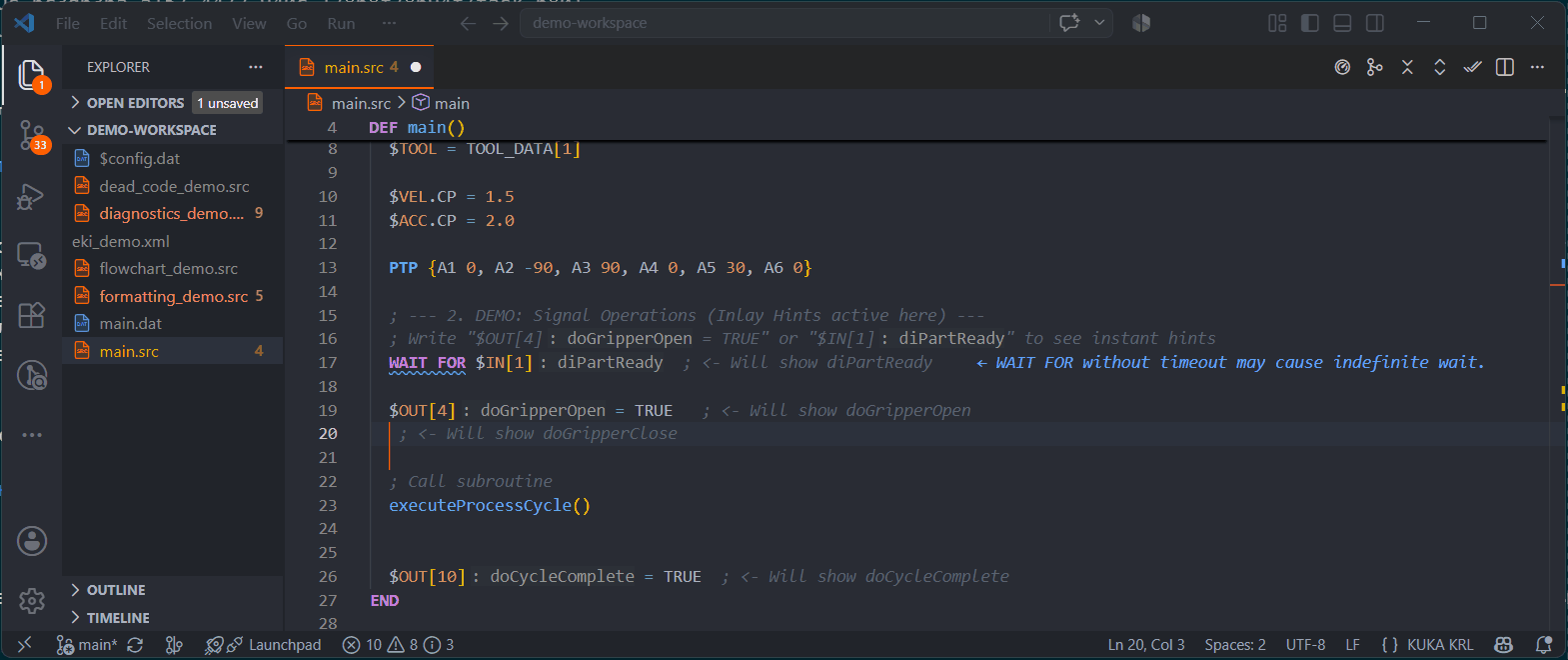

Real-Time Hardware Signal Inlay Hints

Injects human-readable signal names from config files directly beside numeric $IN[x] and $OUT[y] indexes.

Commissioning Benefit:Engineers understand code immediately without consulting electrical wiring schematics.

[FAULT] Before (Legacy / Fault Risk):

IF $IN[27] == TRUE THEN ; What does 27 mean?

[OK] With KUKA KRL Pro:

IF $IN[27] /* Part_Clamped_OK */ == TRUE THEN

Config: kuka.inlayHints.signalssettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#05[FREE]

⌨️ Shift+Alt+F

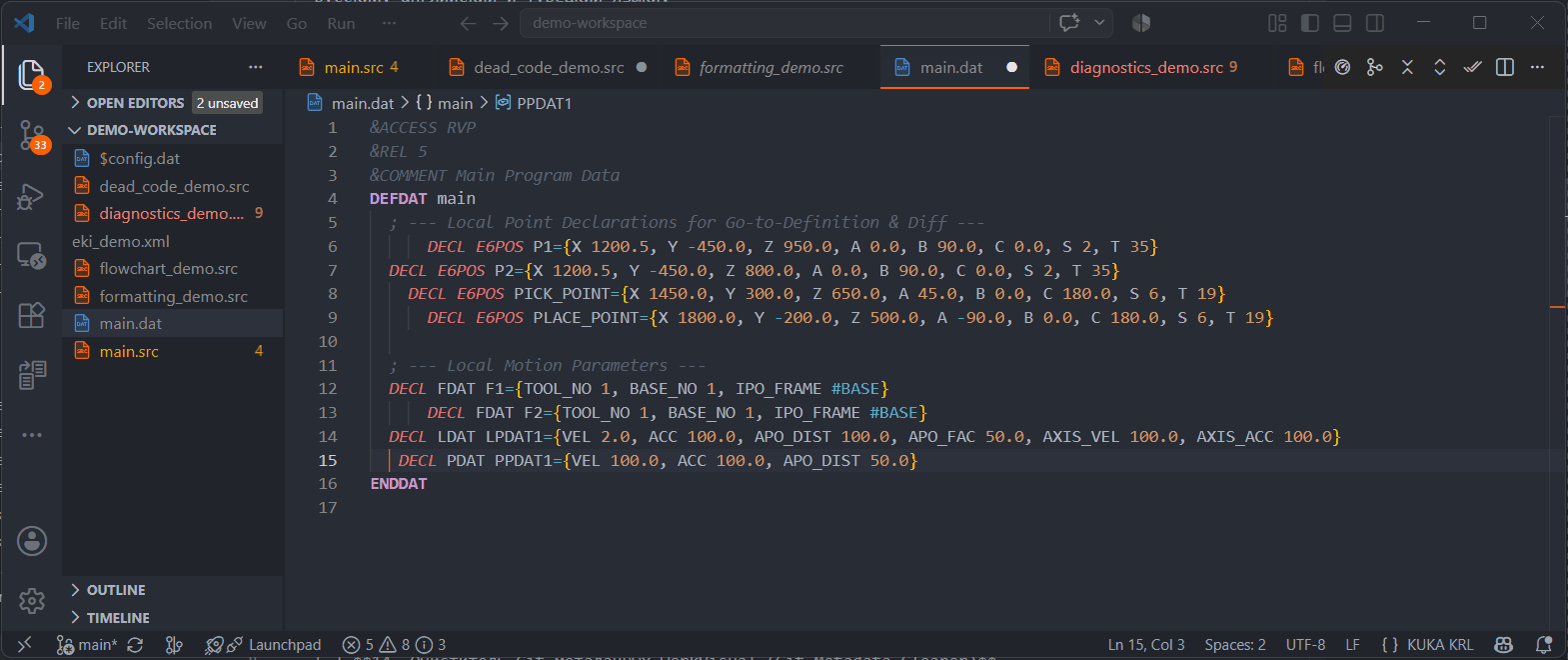

Code Formatter & Indentation Engine

Standardizes indentations and capitalization for nested DEF, IF, LOOP, and SWITCH blocks automatically.

Commissioning Benefit:Clean, auditable code ready for OEM acceptance (VW, BMW, Mercedes standards).

[FAULT] Before (Legacy / Fault Risk):

def test()
ptp xhome
endif
end

[OK] With KUKA KRL Pro:

DEF Test()
  PTP XHOME
END

Config: editor.formatOnSavesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#06[FREE]

⌨️ Ctrl+K Ctrl+0

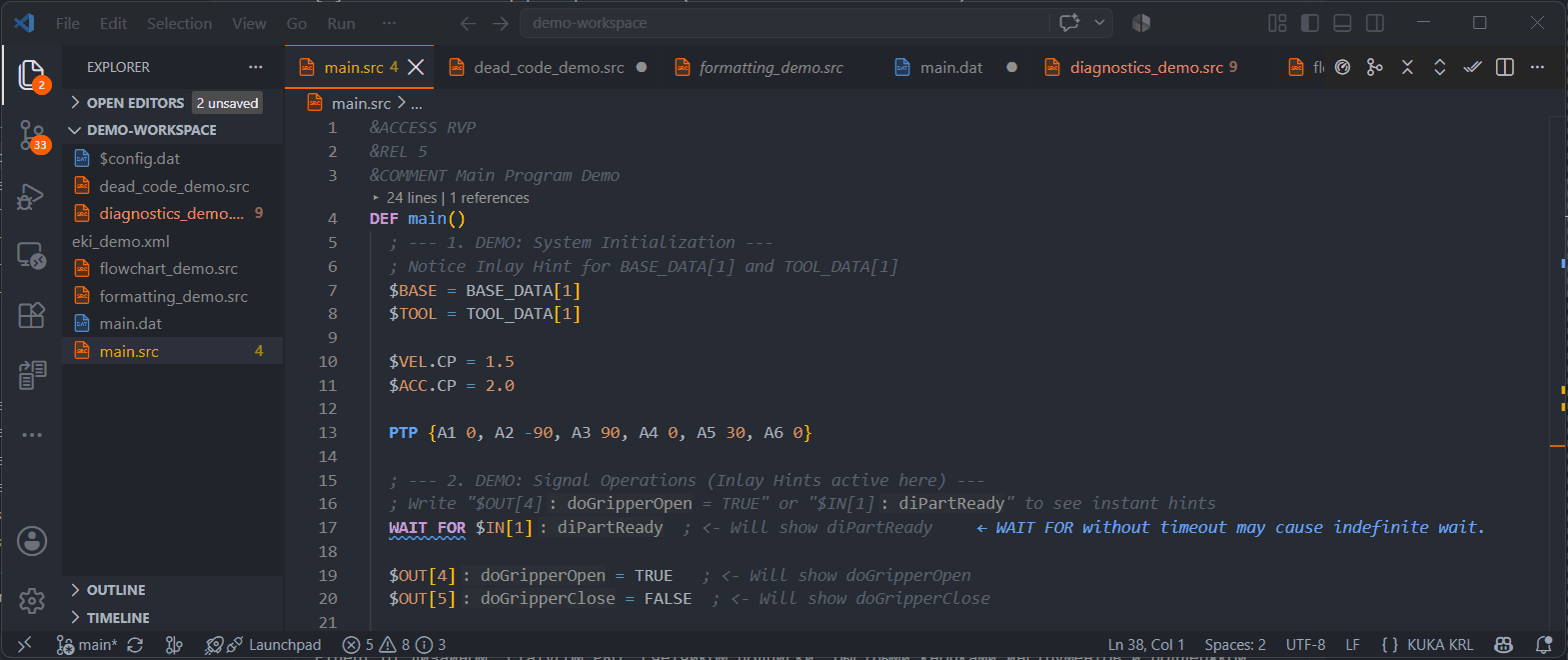

Quick Fold Toolbar (FOLD / ENDFOLD)

Full folding support for WorkVisual and SmartPAD FOLD blocks, subprograms, and data structures.

Commissioning Benefit:Hides thousands of lines of teach pendant boilerplate to focus on core process logic.

[FAULT] Before (Legacy / Fault Risk):

; FOLD BAS INI
; 50 lines of motion initialization
; ENDFOLD

[OK] With KUKA KRL Pro:

▸ ; FOLD BAS INI ... [50 lines folded]

Config: editor.foldingsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#07[FREE]

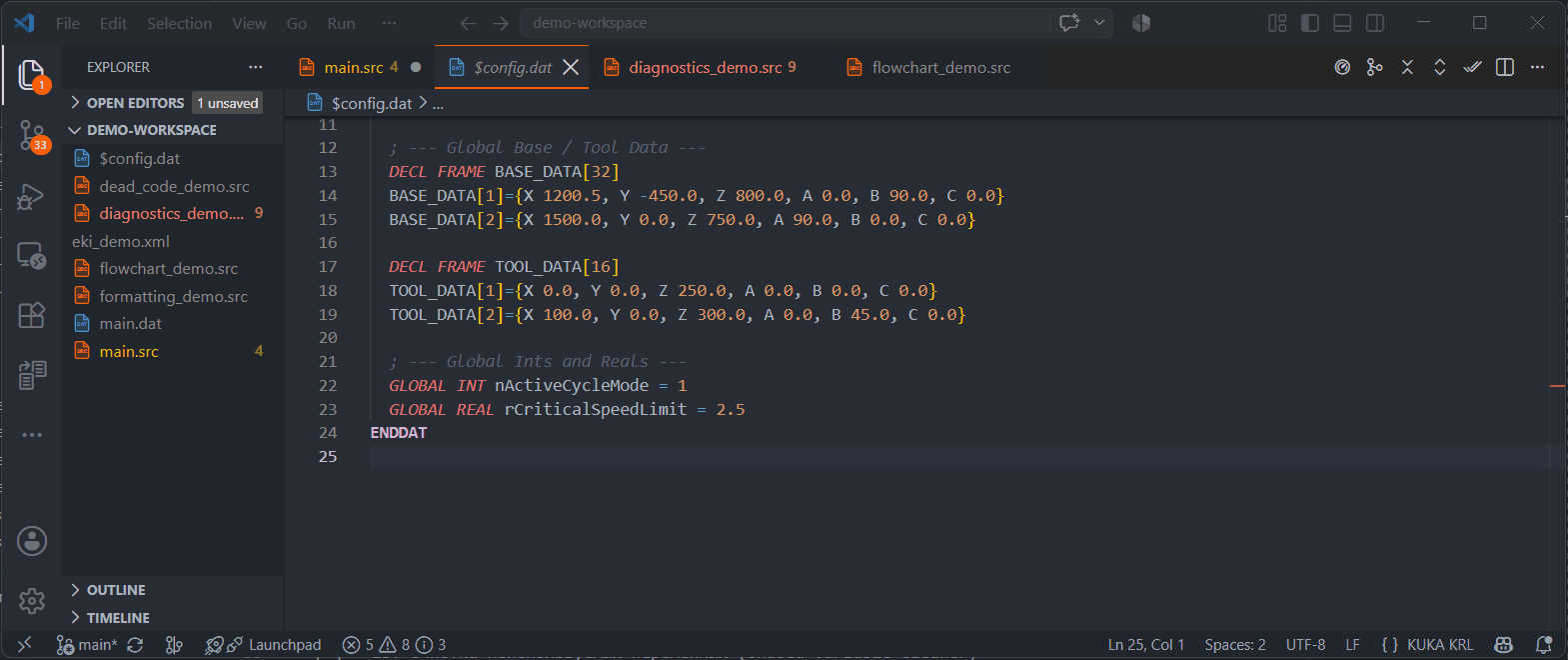

⌨️ Shift+F12

Find All References Workspace Search

Locates every occurrence of a point, signal, subprogram, or variable across all cell files.

Commissioning Benefit:Prevents breaking shared points or subroutines during cell refactoring.

[FAULT] Before (Legacy / Fault Risk):

; Guessing which routines call PickPart()...

[OK] With KUKA KRL Pro:

; Found 8 references in Cell.src, Routine1.src, Safety.src

Config: kuka.references.searchsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

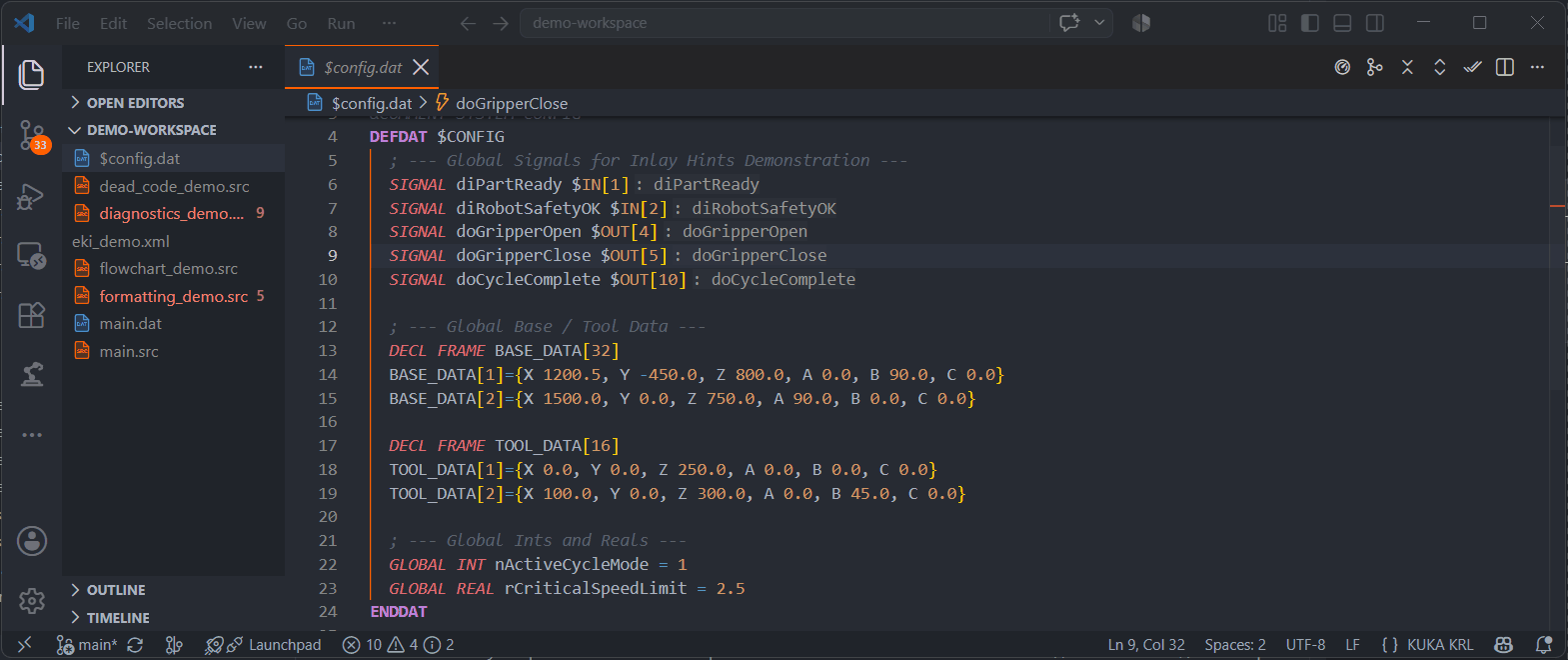

#08[FREE]

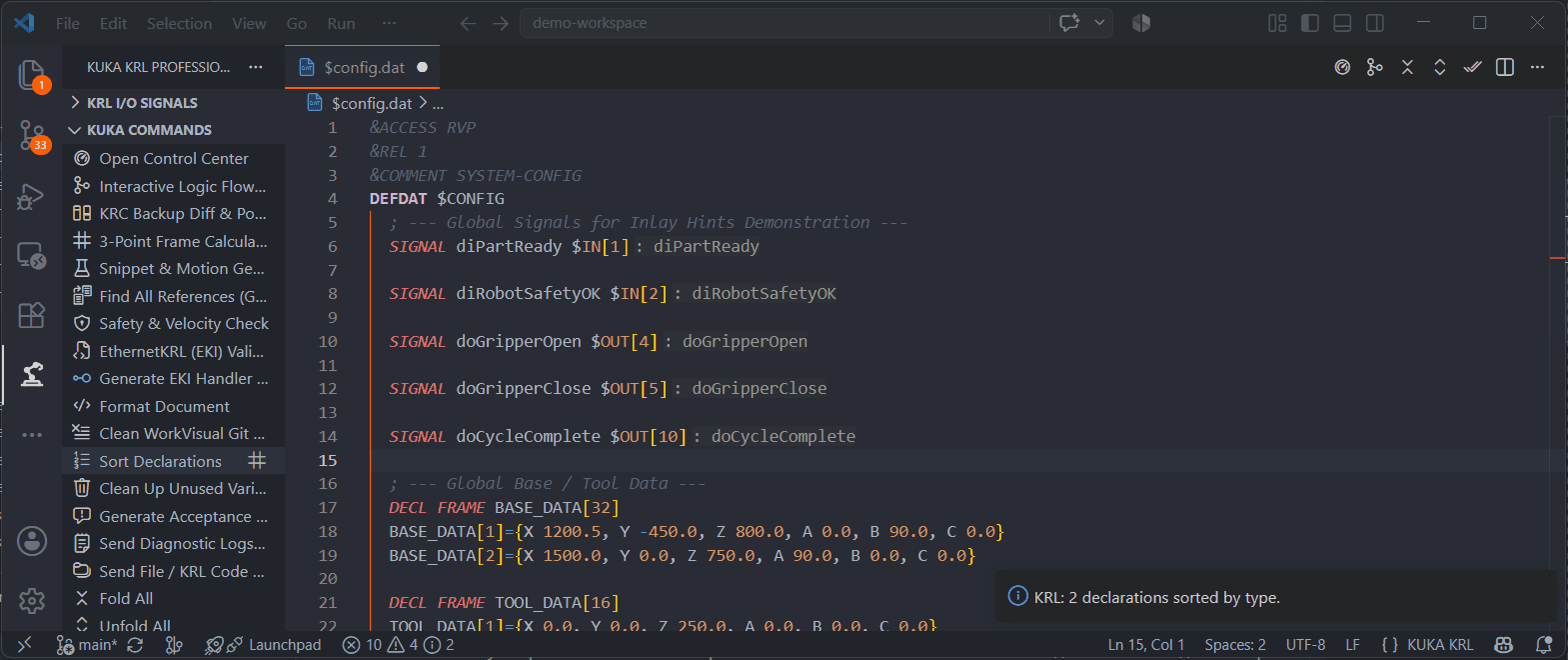

⌨️ Ctrl+Shift+P > Sort

Declaration Sorter (INT, REAL, FRAME)

Groups and alphabetically sorts declarations in .dat and .src by type: BOOL, INT, REAL, CHAR, FRAME, E6POS.

Commissioning Benefit:Brings pristine order to legacy files with hundreds of disorganized global variables.

[FAULT] Before (Legacy / Fault Risk):

DECL REAL Y
DECL INT A
DECL FRAME F
DECL INT B

[OK] With KUKA KRL Pro:

; Integers:
DECL INT A, B
; Reals:
DECL REAL Y
; Frames:
DECL FRAME F

Config: kuka.declarations.sortsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#09[FREE]

⌨️ Hover Mouse

Hover Telemetry & Read/Write Status

Hover over any variable to inspect data type, dimension arrays, and read/write access permissions.

Commissioning Benefit:Immediate clarity on read-only system flags vs writeable production variables.

[FAULT] Before (Legacy / Fault Risk):

; Unsure if $POS_ACT can be overwritten...

[OK] With KUKA KRL Pro:

ℹ️ $POS_ACT: E6POS (READ-ONLY System Variable)

Config: editor.hover.enabledsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#10[FREE]

⌨️ Auto

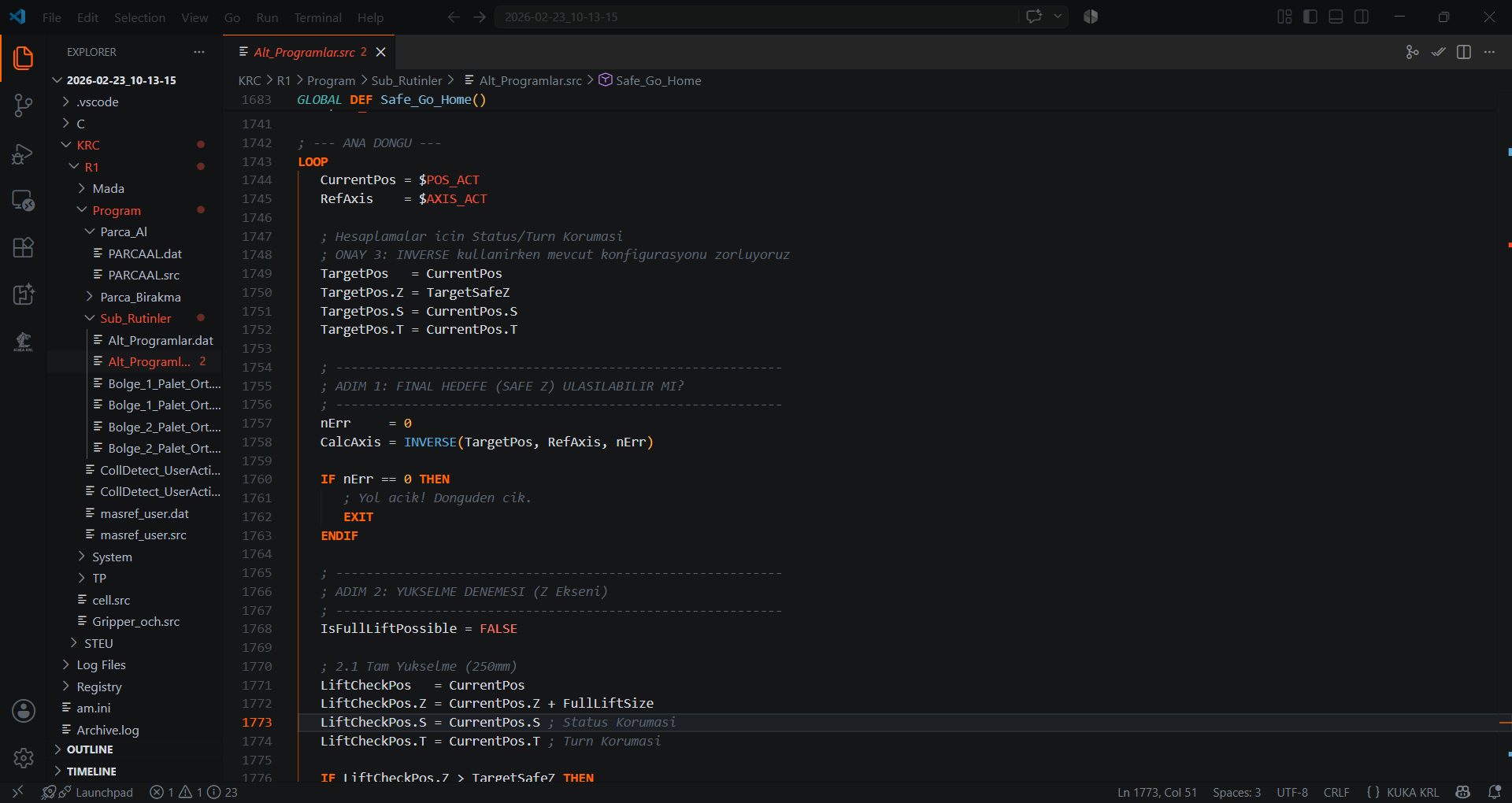

Semantic Token & Scope Highlighting

Visually separates local variables, global .dat structures, and KSS system registers with distinctive colors.

Commissioning Benefit:Instantly spot variable shadowing and accidental global overwrites.

[FAULT] Before (Legacy / Fault Risk):

; Same color for local and global variables

[OK] With KUKA KRL Pro:

; Local = Blue, Global = Cyan, System = Orange

Config: editor.semanticHighlightingsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

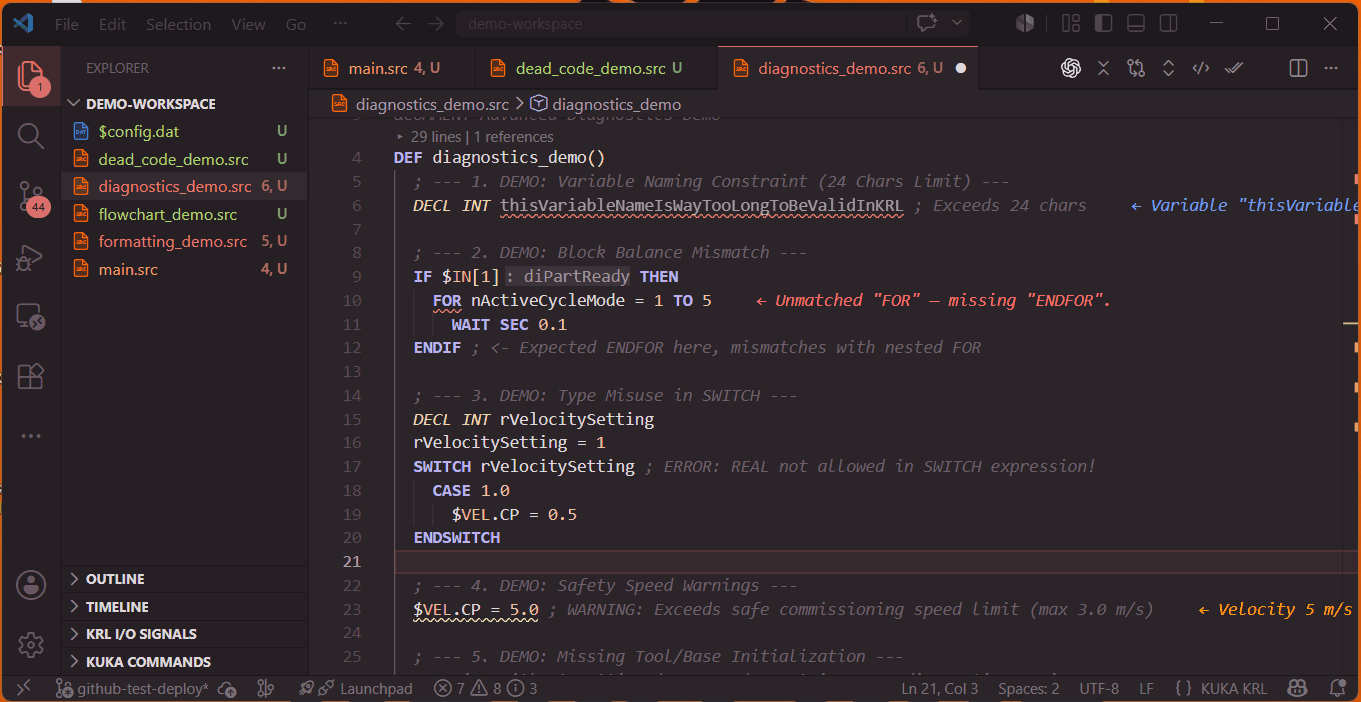

#11[PRO]

⌨️ Auto on Save

Block Scope Balance Validator (IF/LOOP)

Flags missing or unmatched ENDIF, ENDFOR, and ENDLOOP tags in real time before code reaches the robot.

Commissioning Benefit:Prevents controller compiler lockups and emergency stops on program selection.

[FAULT] Before (Legacy / Fault Risk):

IF $IN[1] == TRUE THEN
  PTP XPICK
; Missing ENDIF statement!

[OK] With KUKA KRL Pro:

IF $IN[1] == TRUE THEN
  PTP XPICK
ENDIF ; [OK] Balanced

Config: kuka.safety.blockBalancesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#12[PRO]

⌨️ Ctrl+Shift+P > Lint

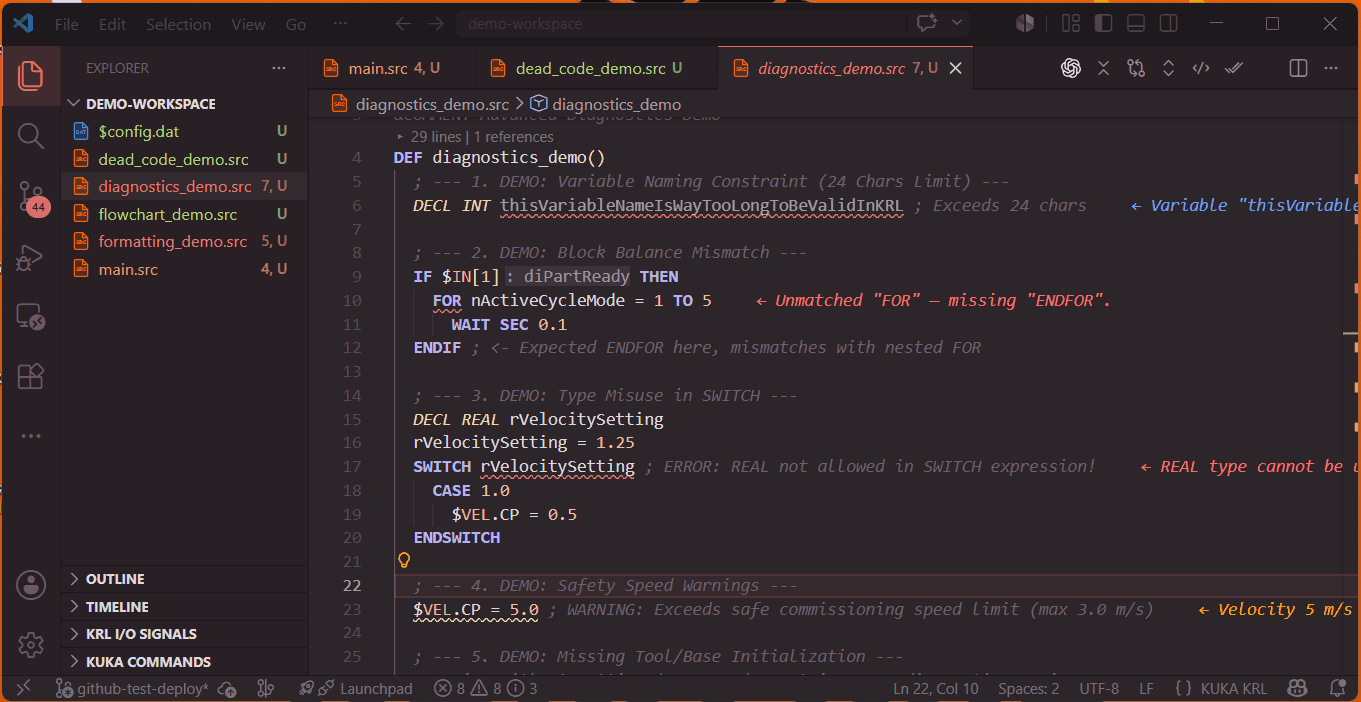

Velocity Collision Inspector ($VEL.CP)

Scans for excessive Cartesian speeds ($VEL.CP > 3.0 m/s) in proximity to fixtures or gripping positions.

Commissioning Benefit:Eliminates mechanical robot collisions and bent tooling during first dry runs.

[FAULT] Before (Legacy / Fault Risk):

LIN XPICK_PART Vel=3.5 m/s ; DANGEROUS HIGH SPEED

[OK] With KUKA KRL Pro:

LIN XPICK_PART Vel=0.5 m/s ; [OK] Safe Touchdown

Config: kuka.safety.velocityGuardsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#13[PRO]

⌨️ Ctrl+Shift+P > Torq

Collision Torque Guard ($TORQMON)

Inserts dynamic torque monitoring limits ($TORQMON) around critical assembly and insertion motions.

Commissioning Benefit:Protects expensive servomotors and gearboxes in case of misaligned workpieces.

[FAULT] Before (Legacy / Fault Risk):

; Blind force insertion without torque monitoring
LIN XINSERT_PIN

[OK] With KUKA KRL Pro:

$TORQMON_GUARD(120) ; Barrier active
LIN XINSERT_PIN
$TORQMON_RESET()

Config: kuka.safety.torqmonGuardsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#14[PRO]

⌨️ Auto

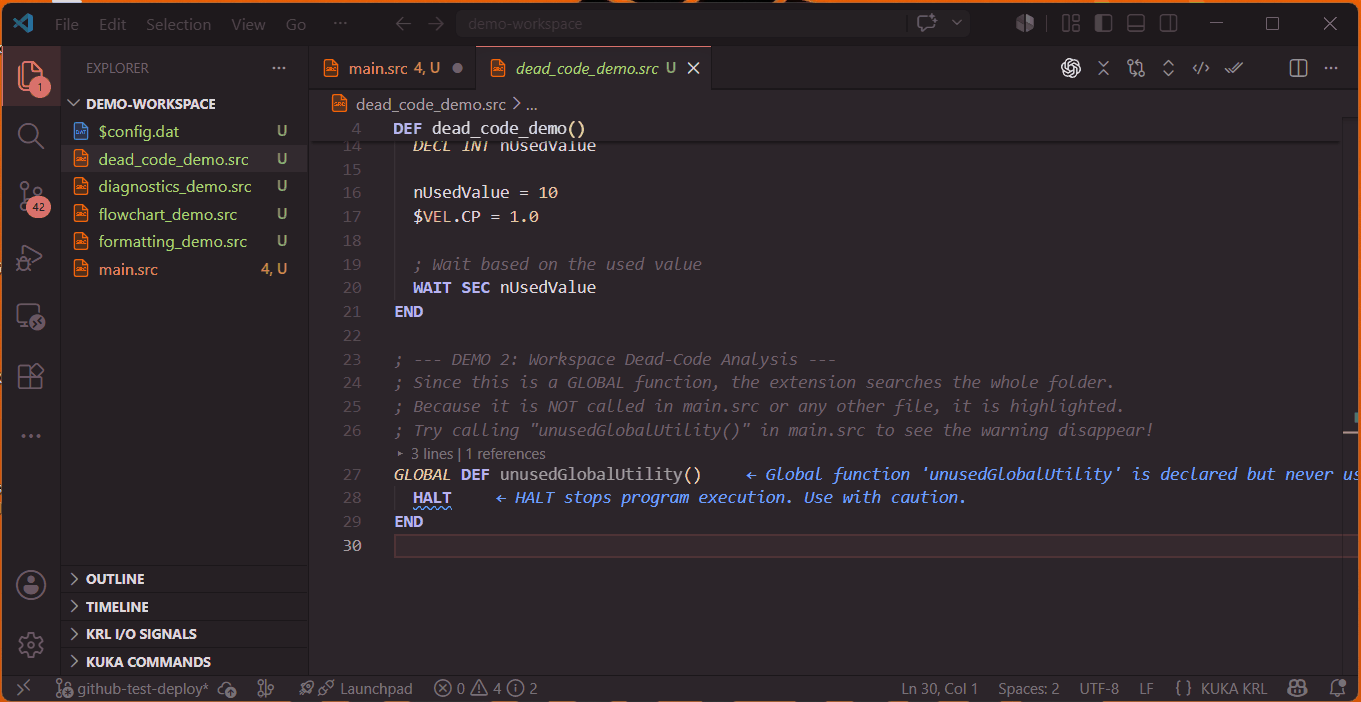

Dead-Code & Unreachable Path Analyzer

Highlights unexecuted lines situated after RETURN, HALT, EXIT, or permanent IF FALSE branches.

Commissioning Benefit:Reveals orphaned safety logic and forgotten temporary test statements.

[FAULT] Before (Legacy / Fault Risk):

RETURN
PULSE($OUT[10], TRUE, 0.5) ; NEVER REACHED

[OK] With KUKA KRL Pro:

; Dead code highlighted and flagged with warning

Config: kuka.diagnostics.deadCodesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#15[PRO]

⌨️ Ctrl+Shift+P > Sync

Type Validation & .DAT Sync Inspector

Checks that variables declared in .src match the exact datatype defined in corresponding .dat files.

Commissioning Benefit:Stops runtime type mismatch faults when running on physical KRC controllers.

[FAULT] Before (Legacy / Fault Risk):

; .src: DECL INT COUNT / .dat: DECL REAL COUNT

[OK] With KUKA KRL Pro:

[OK] Verified: COUNT is INT in both .src and .dat

Config: kuka.diagnostics.datSyncsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#16[FREE]

⌨️ Auto

Non-ASCII & Cyrillic Layout Detector

Detects look-alike Cyrillic or non-ASCII characters (e.g. Cyrillic "С", "О", "А") inside variable names.

Commissioning Benefit:Eliminates mysterious KSS compiler errors that take hours to diagnose visually.

[FAULT] Before (Legacy / Fault Risk):

PTP XHОME ; Hidden Cyrillic "О" causes compile abort!

[OK] With KUKA KRL Pro:

PTP XHOME ; [OK] Verified pure ASCII identifier

Config: kuka.diagnostics.nonAsciisettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#17[PRO]

⌨️ Auto

Array Bounds & Index Overrun Guard

Warns against indexes exceeding bounds in TOOL_DATA[16], BASE_DATA[32], and custom arrays.

Commissioning Benefit:Avoids KSS Array Index Out of Range emergency line stops.

[FAULT] Before (Legacy / Fault Risk):

$TOOL = TOOL_DATA[17] ; KSS limit is 16!

[OK] With KUKA KRL Pro:

$TOOL = TOOL_DATA[16] ; [OK] In valid 1..16 bounds

Config: kuka.safety.arrayBoundssettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#18[PRO]

⌨️ Auto

BAS(#INITMOV) Motion Init Guard

Verifies that every motion program properly calls BAS(#INITMOV, 0) before executing Cartesian moves.

Commissioning Benefit:Prevents uncontrolled acceleration jumps caused by uninitialized motion interpolators.

[FAULT] Before (Legacy / Fault Risk):

DEF Bad_Cycle()
  PTP XHOME ; Missing BAS(#INITMOV)!

[OK] With KUKA KRL Pro:

DEF Safe_Cycle()
  BAS(#INITMOV, 0) ; [OK] Interpolator ready
  PTP XHOME

Config: kuka.safety.initmovChecksettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#19[PRO]

⌨️ Auto

Unassigned Active Frame Guard ($TOOL / $BASE)

Flags linear and PTP motions occurring prior to explicit $TOOL and $BASE assignment.

Commissioning Benefit:Prevents catastrophic collisions from the robot driving with the wrong tool definition.

[FAULT] Before (Legacy / Fault Risk):

LIN XPICK ; Danger: $TOOL not assigned!

[OK] With KUKA KRL Pro:

$TOOL = TOOL_DATA[1]
$BASE = BASE_DATA[2]
LIN XPICK

Config: kuka.safety.activeFrameChecksettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#20[PRO]

⌨️ Ctrl+Shift+P > Graph

Interactive Mermaid Flowchart Visualizer

Transforms intricate KRL logic into an interactive, clickable vector control flow diagram in real time.

Commissioning Benefit:Allows new engineers to understand 5,000-line legacy programs in 5 minutes.

[FAULT] Before (Legacy / Fault Risk):

; Reading 20 nested IF-THEN-ELSE statements...

[OK] With KUKA KRL Pro:

; Visual flowchart rendered instantly in side panel

Config: kuka.flowchart.autoGeneratesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#21[PRO]

⌨️ Click Node

Bidirectional Graph-to-Code Jumping

Clicking any node in the flowchart jumps cursor straight to the corresponding line in the editor.

Commissioning Benefit:Effortless debugging of deep decision trees and branching logic.

[FAULT] Before (Legacy / Fault Risk):

; Manually searching for where an alarm was triggered

[OK] With KUKA KRL Pro:

[OK] Click [AlarmNode] → Jumps to line 412 in editor

Config: kuka.flowchart.bidirectionalsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#22[PRO]

⌨️ Ctrl+Shift+P > Export SVG

Vector SVG Flowchart Export for Handover

Export crisp, scalable vector diagrams suitable for customer documentation, Word, and PDF manuals.

Commissioning Benefit:Saves days of drawing manual flowcharts in Visio during project handover.

[FAULT] Before (Legacy / Fault Risk):

; Manual redrawing of logic in MS Visio (8 hours)

[OK] With KUKA KRL Pro:

[OK] 1-Click SVG Export: Complete cell diagram ready

Config: kuka.flowchart.exportSvgsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#23[PRO]

⌨️ Auto

Signal & Timer Badges in Flowchart

Renders dedicated I/O indicators ($IN, $OUT) and $TIMER values directly inside decision diamonds.

Commissioning Benefit:Instantly identifies which physical sensors control each step of the sequence.

[FAULT] Before (Legacy / Fault Risk):

; Condition: ($IN[14] && !$IN[15])

[OK] With KUKA KRL Pro:

Node: [Part Check] → IN[14]:ON, IN[15]:OFF

Config: kuka.flowchart.showBadgessettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#24[PRO]

⌨️ Ctrl+Shift+P > Tree

Subroutine Call-Tree Hierarchy

Visualizes the entire call tree starting from Cell.src down to individual gripping routines.

Commissioning Benefit:Guarantees complete coverage when auditing cell execution sequences.

[FAULT] Before (Legacy / Fault Risk):

; Tracing nested subroutines manually through 15 files

[OK] With KUKA KRL Pro:

Cell.src → PickPart() → GripClose() → CheckVacuum()

Config: kuka.flowchart.callTreesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#25[FREE]

⌨️ Auto

SWITCH-CASE Branch Isolation

Breaks complex multi-variant part selectors (CASE 1..10) into clean parallel branches.

Commissioning Benefit:Ensures no part variant branch is missing default error handling.

[FAULT] Before (Legacy / Fault Risk):

SWITCH nPartType
  CASE 1: ...
  CASE 2: ...

[OK] With KUKA KRL Pro:

Branching diagram clearly displaying all 10 part routes

Config: kuka.flowchart.switchCasesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#26[PRO]

⌨️ Auto

Infinite Loop Lockup Detector

Flags LOOP/WHILE structures lacking exit conditions or WAIT instructions that would freeze the CPU.

Commissioning Benefit:Prevents controller watchdog resets during autonomous operation.

[FAULT] Before (Legacy / Fault Risk):

WHILE $IN[1] == FALSE
  ; No wait! CPU freezes at 100%
ENDWHILE

[OK] With KUKA KRL Pro:

WHILE $IN[1] == FALSE
  WAIT SEC 0.05 ; [OK] Non-blocking polling
ENDWHILE

Config: kuka.safety.infiniteLoopDetectorsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#27[PRO]

⌨️ Auto

WAIT Signal & Timeout Validator

Flags bare WAIT FOR statements lacking timeout handlers that could freeze an automotive line.

Commissioning Benefit:Prevents silent cell lockups when hardware sensors fail to trigger.

[FAULT] Before (Legacy / Fault Risk):

WAIT FOR $IN[10] == TRUE ; Line stalls if sensor breaks

[OK] With KUKA KRL Pro:

WAIT FOR $IN[10] == TRUE OR $TIMER_FLAG[1] ; With timeout

Config: kuka.safety.waitTimeoutChecksettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#28[PRO]

⌨️ Ctrl+Shift+P > Diff

SmartPAD ZIP Archive Direct Diff

Compares active development files directly against USB SmartPAD .ZIP archives without extraction.

Commissioning Benefit:Instantly identifies unrecorded changes made by operators on the night shift.

[FAULT] Before (Legacy / Fault Risk):

; Manually unzipping and searching through 400 files

[OK] With KUKA KRL Pro:

[OK] Side-by-side diff with SmartPAD_Backup_2026.zip

Config: kuka.backup.directZipDiffsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#29[PRO]

⌨️ Ctrl+Shift+P > Delta

6-Axis Point Delta Spatial Inspector

Calculates exact coordinate deltas (ΔX, ΔY, ΔZ, ΔA, ΔB, ΔC) between point versions and flags hazards.

Commissioning Benefit:Immediately flags unauthorized touch-ups exceeding safety tolerance thresholds.

[FAULT] Before (Legacy / Fault Risk):

; Point modified on pendant: XPICK_PART

[OK] With KUKA KRL Pro:

ΔX: +0.00mm, ΔY: +12.45mm (HAZARD SHIFT DETECTED)

Config: kuka.math.pointDeltaInspectorsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#30[PRO]

⌨️ Ctrl+Shift+P > Calc

3-Point Base/Tool Frame Calculator

Computes Euler orientation angles (A, B, C) and BASE_DATA structures from 3 physical touch points.

Commissioning Benefit:Zero trigonometry errors when calibrating welding fixtures and stamping dies.

[FAULT] Before (Legacy / Fault Risk):

; Manual calculation of Euler angles on scratch paper...

[OK] With KUKA KRL Pro:

DECL FRAME BASE_DATA[1] = {X 1250, Y 350, Z 820, A 0, B 0, C 0}

Config: kuka.math.frameCalculatorsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#31[PRO]

⌨️ Ctrl+Shift+P > TCP

Tool Center Point (TCP) Shift Inverter

Recalculates point targets when a damaged welding torch or gripper is replaced with new offsets.

Commissioning Benefit:Eliminates reteaching hundreds of weld seams after mechanical tool repair.

[FAULT] Before (Legacy / Fault Risk):

; Retouching 150 points manually after torch change

[OK] With KUKA KRL Pro:

[OK] 150 Points transformed automatically for new TCP

Config: kuka.math.tcpInvertersettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#32[FREE]

⌨️ Auto

Geometric Operator (Frame Multiplication)

Validates and visually models KRL frame transformations combining offsets via the colon operator (:).

Commissioning Benefit:Prevents inverted matrix transformations in dynamic palletizing offsets.

[FAULT] Before (Legacy / Fault Risk):

fTarget = fOffset : fBase ; Wrong order!

[OK] With KUKA KRL Pro:

fTarget = fBase : fOffset ; [OK] Validated frame product

Config: kuka.math.geometricOperatorsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#33[FREE]

⌨️ Ctrl+Shift+P > Euler

Euler Angles & Quaternion Converter

Converts between KUKA Euler convention (A=Z, B=Y, C=X) and 3D vision sensor quaternions.

Commissioning Benefit:Seamless integration with Cognex, Photoneo, and Keyence 3D bin-picking cameras.

[FAULT] Before (Legacy / Fault Risk):

q = [0.707, 0, 0.707, 0] ; Camera orientation

[OK] With KUKA KRL Pro:

Euler KUKA: {A 90.0, B 0.0, C 90.0}

Config: kuka.math.eulerConvertersettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#34[PRO]

⌨️ Auto

Singularity & Axis Status/Turn Inspector

Warns against wrist singularity postures (Axis 5 near 0°) during continuous linear moves.

Commissioning Benefit:Avoids violent high-speed axis whipping in singularity zones.

[FAULT] Before (Legacy / Fault Risk):

LIN XAPPROACH ; Axis 5 reaches 0.1° (Singularity trap)

[OK] With KUKA KRL Pro:

[WARN] WARNING: Axis 5 singularity on linear path near XAPPROACH

Config: kuka.safety.singularityChecksettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#35[PRO]

⌨️ Ctrl+Shift+P > Load

Load Data & Inertia Validator (LOAD_DATA)

Validates mass, center of gravity, and inertia moments to verify compliance with robot motor limits.

Commissioning Benefit:Prevents motor overtemperature errors and extends gearbox lifespan.

[FAULT] Before (Legacy / Fault Risk):

LOAD_DATA[1]={M -1, CM {X 0,Y 0,Z 0}} ; Invalid negative mass

[OK] With KUKA KRL Pro:

LOAD_DATA[1]={M 45.2, CM {X 12.1,Y 0.0,Z 180.4}} ; Verified

Config: kuka.safety.loadDataValidatorsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#36[PRO]

⌨️ Ctrl+Shift+P > EKI

EthernetKRL (EKI) XML Schema Validator

Validates EKI XML configuration schemas and telegram buffers for robot-to-server TCP/IP links.

Commissioning Benefit:Fixes malformed XML telegram structures before field commissioning.

[FAULT] Before (Legacy / Fault Risk):

<RECEIVE><ELEMENT Tag="Pose" Type="REAL"/> ; Unclosed tag

[OK] With KUKA KRL Pro:

<RECEIVE><ELEMENT Tag="Pose" Type="REAL"/></RECEIVE> ; [OK] Valid

Config: kuka.eki.xmlValidatorsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#37[PRO]

⌨️ Ctrl+Shift+P > Fieldbus

Profinet & EtherCAT Signal Mapping Auditor

Cross-audits configured fieldbus byte offsets with physical robot digital inputs and outputs.

Commissioning Benefit:Prevents signal displacement faults between PLC and robot controllers.

[FAULT] Before (Legacy / Fault Risk):

; PLC byte 4 mapped to $IN[25] instead of $IN[33]

[OK] With KUKA KRL Pro:

[OK] Byte Alignment Confirmed: PLC Word 2 → $IN[17..32]

Config: kuka.fieldbus.auditorsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#38[PRO]

⌨️ Ctrl+Shift+P > Handshake

PLC Handshake Protocol Generator

Generates robust Request-Acknowledge signal handshakes for Siemens S7 and Beckhoff TwinCAT.

Commissioning Benefit:Eliminates lost commands and race conditions during high-speed cell cycles.

[FAULT] Before (Legacy / Fault Risk):

; Ad-hoc signal toggling prone to race conditions

[OK] With KUKA KRL Pro:

; Safe 4-phase handshake with timeout recovery generated

Config: kuka.templates.handshakesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#39[PRO]

⌨️ Ctrl+Shift+P > OPC

OPC UA & Modbus TCP Packet Templates

Generates telemetry publishing routines transmitting real-time robot coordinates to SCADA dashboards.

Commissioning Benefit:Zero-effort Industrial IoT integration for Industry 4.0 production monitoring.

[FAULT] Before (Legacy / Fault Risk):

; Writing socket routines from scratch

[OK] With KUKA KRL Pro:

[OK] Complete OPC UA state publisher routine generated

Config: kuka.templates.opcuasettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#40[FREE]

⌨️ Ctrl+Shift+P > KVP

KUKAVARPROXY Protocol Formatter

Formats and tests external variable read/write packets for Python and C# integration scripts.

Commissioning Benefit:Instant communication testing for custom vision and automated test benches.

[FAULT] Before (Legacy / Fault Risk):

RAW: 00 05 00 01 00 0A 24 4F 56 5F 50 52 4F

[OK] With KUKA KRL Pro:

READ: $OV_PRO → Value: 100%

Config: kuka.kvp.formattersettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#41[PRO]

⌨️ Auto

RobotSensorInterface (RSI) Stream Helper

Pre-configures real-time 4ms and 12ms deterministic correction channels for seam tracking.

Commissioning Benefit:Guarantees deterministic cycle timing without jitter or communication dropouts.

[FAULT] Before (Legacy / Fault Risk):

; Manual XML channel configuration with timing jitter

[OK] With KUKA KRL Pro:

[OK] Deterministic 4ms RSI interpolation channel validated

Config: kuka.rsi.streamHelpersettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#42[PRO]

⌨️ Auto

Safety I/O ($SAFEIN/$SAFEOUT) Dual-Channel Checker

Validates redundant dual-channel safety signal pairings for light curtains and emergency stops.

Commissioning Benefit:Ensures ISO 13849-1 Performance Level d/e safety compliance.

[FAULT] Before (Legacy / Fault Risk):

IF $SAFEIN[1] == TRUE ; Incomplete single-channel check!

[OK] With KUKA KRL Pro:

IF $SAFEIN[1] AND $SAFEIN[2] ; [OK] Dual-channel verified

Config: kuka.safety.dualChannelSafetysettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#43[FREE]

⌨️ Ctrl+Shift+P > Git

Embedded KRL Git Graph & Branch Visualizer

Visual branch and commit history viewer tuned specifically for multi-robot Git repositories.

Commissioning Benefit:Enables safe collaboration between multiple commissioning engineers on site.

[FAULT] Before (Legacy / Fault Risk):

; Chaos with USB drives and conflicting file copies

[OK] With KUKA KRL Pro:

[OK] Clean visual Git branches: main → cell_welding → tuning

Config: kuka.git.graphsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#44[FREE]

⌨️ Shift+Alt+C

WorkVisual Metadata Cleaner (&ACCESS, &REL)

Strips noisy WorkVisual proprietary header lines (&ACCESS, &REL, &COMMENT) from git staging.

Commissioning Benefit:Produces pristine Git diffs showing only real engineering code modifications.

[FAULT] Before (Legacy / Fault Risk):

&ACCESS RVP
&REL 1
&PARAM EDITMASK = *
DEF MyProg()

[OK] With KUKA KRL Pro:

DEF MyProg() ; [OK] Pure clean source code

Config: kuka.git.cleanMetadatasettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#45[FREE]

⌨️ Ctrl+Shift+F

Multi-Robot Station Mass Search & Replace

Fast regex search across multiple robot folders in a single cell with KRL syntax filtering.

Commissioning Benefit:Renames shared signals across 8 robots in seconds without missing occurrences.

[FAULT] Before (Legacy / Fault Risk):

; Opening 8 robot project folders one by one

[OK] With KUKA KRL Pro:

[OK] Replaced $OUT[15] in 24 files across Robot_1..Robot_8

Config: kuka.search.cellScopesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#46[PRO]

⌨️ Ctrl+Shift+P > OEM

Automotive Standard Linter (VASS, BMW, Integra)

Validates compliance with German automotive OEM standards (VW VASS, BMW TMO, Mercedes Integra).

Commissioning Benefit:Guarantees first-time approval during official OEM factory buy-offs.

[FAULT] Before (Legacy / Fault Risk):

DEF my_routine() ; Rejected by VASS naming convention

[OK] With KUKA KRL Pro:

DEF FB_CELL_START() ; [OK] Fully VASS 6/7 Compliant

Config: kuka.lint.oemStandardssettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#47[FREE]

⌨️ Auto on Save

Automated .DAT Timestamp Touch-up Cleaner

Suppresses false git modifications caused by SmartPAD touching timestamps without coordinate changes.

Commissioning Benefit:Eliminates hundreds of false merge conflicts in version control.

[FAULT] Before (Legacy / Fault Risk):

; 40 .dat files marked modified only because of timestamp

[OK] With KUKA KRL Pro:

[OK] 0 False changes: Only genuine coordinate shifts staged

Config: kuka.git.cleanTimestampssettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#48[PRO]

⌨️ Ctrl+Shift+P > Pack

KUKA Deployment Archive Builder (.KRA / .ZIP)

Bundles code files into official KUKA SmartPAD archive structures ready for direct USB restoration.

Commissioning Benefit:Zero "Corrupted Archive" errors when restoring backups on physical KRC controllers.

[FAULT] Before (Legacy / Fault Risk):

; Manually zipping files into wrong folder depth

[OK] With KUKA KRL Pro:

[OK] Valid KRC_Archive.zip ready for USB restore

Config: kuka.archive.buildersettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#49[FREE]

⌨️ Ctrl+Shift+P > License

Offline License Manager (Up to 3 Machines)

Manage offline activation keys with 1-click license transfer between commissioning laptops.

Commissioning Benefit:Guaranteed license validity even inside electromagnetic-shielded plant basements.

[FAULT] Before (Legacy / Fault Risk):

; Internet requirement stalls work in offline facility

[OK] With KUKA KRL Pro:

[OK] Cached Offline License: Active on Field Laptop

Config: kuka.license.managersettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#50[FREE]

⌨️ Ctrl+Shift+P > Snippets

Industrial Snippet Factory (40+ Patterns)

Rich library of pre-tested production templates for palletizing, spot welding, dispensing, and safety cycles.

Commissioning Benefit:Deploy new robotic stations up to 3x faster using certified production code patterns.

[FAULT] Before (Legacy / Fault Risk):

; Writing 200 lines of palletizing trigonometry from zero

[OK] With KUKA KRL Pro:

[OK] Tab snippet "kuka-palletize" → Complete verified pattern

Config: kuka.snippets.enabledsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#51[FREE]

⌨️ Ctrl+Shift+P > Fix All Safe Issues

Safe Automated Code Repair Engine

Applies verified non-destructive fixes across thousands of occurrences: normalizes case, balances P00 handshakes, ensures DEF/END pairs.

Commissioning Benefit:Repairs up to 6,000+ routine errors in minutes across 200+ cell backup files with zero code breaking.

[FAULT] Before (Legacy / Fault Risk):

def pick()
wait sec 0.5
ptp xhome

[OK] With KUKA KRL Pro:

DEF pick()
WAIT SEC 0.5
PTP xhome
END

Config: kuka.quickFix.safeModesettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#52[PRO]

⌨️ Auto on Save

AST Rollback Guard & Checksum Integrity

Maintains in-memory AST rollback snapshots and verifies CRC32/SHA256 checksums before committing automatic transformations.

Commissioning Benefit:Zero corrupted files on disk: atomic undo rollback guarantees file preservation even on crash.

[FAULT] Before (Legacy / Fault Risk):

; Transform failed midway -> damaged corrupted file

[OK] With KUKA KRL Pro:

[OK] Rollback Guard: Atomic restore confirmed, 0 bytes lost

Config: kuka.lint.astRollbackGuardsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#53[PRO]

⌨️ Ctrl+Shift+P > Mount ZIP

Direct Backup Archive Explorer & Live ZIP Mount

Inspect, search, and navigate full KRC backup ZIP archives as a virtual project folder without extracting to disk.

Commissioning Benefit:Instantly inspects 200MB controller archives on field laptops without creating gigabytes of temp files.

[FAULT] Before (Legacy / Fault Risk):

; Manual unzip: 15,000 files extracted to desktop folder

[OK] With KUKA KRL Pro:

[OK] Virtual Mounted: KRC4_Archive.zip [Read-Only Safe Browse]

Config: kuka.backup.zipExplorersettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#54[PRO]

⌨️ Ctrl+Shift+P > Event Log

Pure-TS Binary Event Log (.evt) Decoder

Decodes proprietary KUKA controller binary event logs (.evt/.log) directly in the editor into structured timelines.

Commissioning Benefit:Diagnose controller crashes and emergency stop triggers directly inside your IDE within seconds.

[FAULT] Before (Legacy / Fault Risk):

; Unreadable binary file KrcLog.evt (Hex: 0x4B 0x52 0x43...)

[OK] With KUKA KRL Pro:

[OK] Decoded: [14:22:01] ACK_ESTOP Triggered | [14:22:03] DRIVE_OFF

Config: kuka.logs.evtDecodersettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#55[PRO]

⌨️ Auto

Wrist Singularity Trajectory Guard (Axis 5)

Predicts dangerous wrist alignment (Axis 4 and Axis 6 collinearity, Axis 5 approaching 0°) on linear paths.

Commissioning Benefit:Prevents violent mechanical whipping and gearbox overtorque alarms in production cycles.

[FAULT] Before (Legacy / Fault Risk):

LIN XPICK_PART ; A5 passes through 0.2 deg at 2.0 m/s

[OK] With KUKA KRL Pro:

[WARN] CRITICAL: Wrist singularity zone near XPICK_PART (A5 ≈ 0°)

Config: kuka.kinematics.wristSingularitysettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#56[PRO]

⌨️ Auto

Shoulder Singularity & Reachability Barrier

Identifies overhead singularity (wrist center point intersecting Axis 1 vertical centerline) and boundary limits.

Commissioning Benefit:Prevents erratic full 180° base spins when moving parts directly above the robot base.

[FAULT] Before (Legacy / Fault Risk):

LIN XOVERHEAD ; Wrist intersects Axis 1 axis of rotation

[OK] With KUKA KRL Pro:

[WARN] WARNING: Overhead shoulder singularity! Shift trajectory Y+50

Config: kuka.kinematics.shoulderSingularitysettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#57[PRO]

⌨️ Ctrl+Shift+P > I/O Auditor

I/O Signal Collision & Overwrite Auditor

Detects concurrent writes and race conditions where multiple routines write to the same $OUT bit or fieldbus word.

Commissioning Benefit:Eliminates intermittent sensor-actuator glitches that take weeks to troubleshoot in production.

[FAULT] Before (Legacy / Fault Risk):

; Routine A sets $OUT[15] = TRUE; Interrupt B sets $OUT[15] = FALSE

[OK] With KUKA KRL Pro:

[WARN] I/O CONFLICT: $OUT[15] overwritten concurrently in 2 routines

Config: kuka.safety.ioCollisionAuditorsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#58[PRO]

⌨️ Ctrl+Shift+P > Motion Stats

Motion Lookahead ($ADVANCE / $APO) Optimizer

Calculates smooth path blending and warns against premature advance run stops caused by unapproximated I/O triggers.

Commissioning Benefit:Reduces robot station cycle times by up to 12% without increasing peak motor accelerations.

[FAULT] Before (Legacy / Fault Risk):

PTP P1 C_PTP
$OUT[1] = TRUE ; Advance run stop! Robot pauses

[OK] With KUKA KRL Pro:

TRIGGER WHEN DISTANCE=1 DELAY=0 DO $OUT[1]=TRUE ; Smooth path

Config: kuka.motion.optimizersettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#59[PRO]

⌨️ Ctrl+Shift+P > Arc Profiler

3D Arc Welding Profiler & Spline Visualizer

Visualizes SPLINE, SLIN, and SCIRC seam trajectories with torch angle, push/pull orientations, and weaving amplitude.

Commissioning Benefit:Ensures perfect weld penetration and eliminates torch cable entanglement before striking an arc.

[FAULT] Before (Legacy / Fault Risk):

; Blind spline block with unknown torch lead angle

[OK] With KUKA KRL Pro:

[OK] Spline Visualized: 18 points, 15° lead angle, 0 cable twists

Config: kuka.welding.profilersettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#60[PRO]

⌨️ Auto

KSS 9.x & iiQWorks 9.+ Architecture Engine

Full compatibility engine for next-generation KSS 9.x and iiQWorks 9.+ controllers, structures, and modern system schemas.

Commissioning Benefit:Future-proof investment ready for modern automation lines running latest controller generations.

[FAULT] Before (Legacy / Fault Risk):

; Legacy editors fail on KSS 9.x extended constructs

[OK] With KUKA KRL Pro:

[OK] KSS 9.x / iiQWorks 9.+ AST Engine: 100% Validated

Config: kuka.compatibility.kss9settings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#61[FREE]

⌨️ Ctrl+Shift+P > B2B Invoice

B2B Corporate Invoice & EU VAT Generator

Generates official compliant B2B proforma and tax invoices with corporate Tax ID / EU VAT Reverse Charge validation.

Commissioning Benefit:Accelerates corporate accounting approval and procurement cycles from weeks to minutes.

[FAULT] Before (Legacy / Fault Risk):

; Manual back-and-forth corporate invoice requests

[OK] With KUKA KRL Pro:

[OK] Official B2B Invoice PDF with EU VAT Reverse Charge issued

Config: kuka.b2b.invoiceGeneratorsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#62[PRO]

⌨️ Ctrl+Shift+P > Topology

Multi-Robot Station Live Topology Matrix

Visualizes interlock zones, shared clearance signals, and collision interference spaces across multi-robot cells.

Commissioning Benefit:Prevents catastrophic physical collisions between cooperating robots sharing common worktables.

[FAULT] Before (Legacy / Fault Risk):

; Unclear cell interlock leading to mechanical crash

[OK] With KUKA KRL Pro:

[OK] Zone 3 Interlock: Robot 1 & Robot 2 mutual exclusivity verified

Config: kuka.station.topologyMatrixsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#63[PRO]

⌨️ Ctrl+Shift+P > AI Prompt

Industrial AI Copilot & Assist Prompt Factory

Specialized context-aware prompt generator tailored for GitHub Copilot, Cursor, and Windsurf to write flawless KRL.

Commissioning Benefit:Prevents generic hallucinated code from AI assistants by grounding them in rigorous KRL grammar rules.

[FAULT] Before (Legacy / Fault Risk):

; Generic AI generates invalid pseudo-code syntax

[OK] With KUKA KRL Pro:

[OK] Grounded AI Output: Valid DEF..END with correct BAS(#INITMOV)

Config: kuka.ai.promptAssistsettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified

#64[FREE]

⌨️ Live Diagnostics

Real-Time Syntax Error Diagnostics Bonus

Instant red squiggly underlines for unclosed brackets, missing THEN/ENDIF keywords, and illegal tokens in Free edition.

Commissioning Benefit:Every engineer catches basic syntax errors immediately without paying a single cent.

[FAULT] Before (Legacy / Fault Risk):

IF $IN[1] == TRUE
  PTP P1
; Missing THEN & ENDIF!

[OK] With KUKA KRL Pro:

IF $IN[1] == TRUE THEN
  PTP P1
ENDIF ; [OK] Valid syntax

Config: kuka.diagnostics.syntaxBonussettings.json

Click to expand media

KSS 8.2 - 8.7 Supported Liskin Labs Verified
